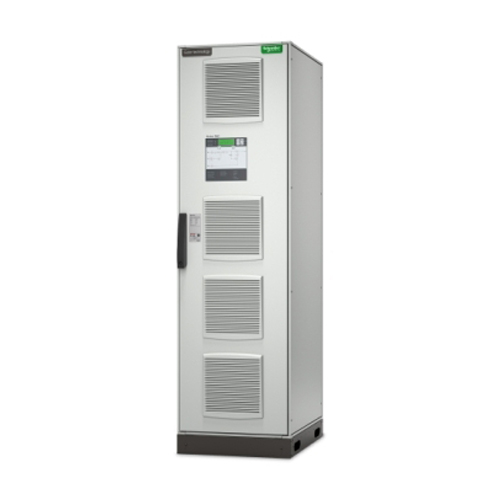

| Presentation | High performance, compact 3 phase UPS power protection fully standardized for heavy industrial applications and harsh environments. Available in 3:3 and 3:1 configurations. |
|---|---|
| Lead time | Usually Ships within 6 Weeks |
| Main Input Voltage | 400 V 3 phases |
|---|---|
| Other Input Voltage | 400 V |
| Main Output Voltage | 400 V 3 phases |
| Other Output Voltage | 400 V |
| rated power in W | 64000 W |
| rated power in VA | 80000 VA |
| output connector type | Hard wire 5-wire (3P + N + E) 1 |
| battery type | External battery system |
| provided equipment | Dust filter Installation guide Network management card User manual |
| bypass wiring configuration | 5 wire (3P + N + E) |
|---|---|
| bypass voltage tolerance | +/- 10 % |
| max bypass input current | 128 A |
| bypass current protection | 160 A |
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| redundant | No |
| height | 210 cm |
|---|---|
| width | 60 cm |
| depth | 80 cm |
| net weight | 460 kg |
| mounting preference | No preference |
| mounting mode | Not rack-mountable |
| two post mountable | 0 |
| USB compatible | No |
| network frequency | 45…65 Hz |
|---|---|
| number of input connectors | 1 hard wire 5-wire (3P + N + E) |
| input voltage limits | 360…440 V 400 V |
| maximum input current | 164 A |
| switching current capacity | 200 A |
| max short time withstand current | 65 kA |
| input harmonic distortion | Less than 5 % for full load |
| input protection type | Upstream protection according to source |
| input current | 164 A per phase (3 phases) |
| load power factor | 0.5 leading to 0.5 lagging without derating |
| Input Power Factor at Full Load | 0.98 |
| Maximum configurable power in W | 64000 W |
|---|---|
| harmonic distortion | Less than 5 % |
| output frequency | 50/60 Hz +/- 1 Hz sync to mains 60 Hz +/- 0.1 % for 60 Hz nominal unsynchronised 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised |
| crest factor | Unlimited |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| output voltage tolerance | +/- 1 % |
| output harmonic distortion | < 2% at 100% linear load and < 5% at 100% non-linear load |
| output overload operation | 10 minutes at 125% and 60 seconds at 150% |
| required output current protection | 160 A |
| neutral output current | 115 A |
| bypass type | Built-in bypass |
| efficiency | 94.6 % (full load) 94.9 % (half load) 93.9 % (in battery operation) |
| Maximum configurable power in VA | 80000 VA |
| product certifications | CE |
|---|---|
| marking | CE Mark |
| standards | IBC 2012 IEC 62040-1-1 IEC 62040-2 IEC 62040-3 ISTA 2B VFI-SS-111 |
| ambient air temperature for operation | -10…40 °C |
|---|---|
| relative humidity | 0…95 % non-condensing |
| operating altitude | 0…10000 ft |
| ambient air temperature for storage | -30…70 °C |
| storage Relative Humidity | 0…95 % Non-condensing |
| storage altitude | 0.00…4572.00 m |
| acoustic level | 65 dBA |
| heat dissipation | 12539 Btu/h |
| IP degree of protection | IP42 with air filter |
| number of battery filled slots | 0 |
|---|---|
| number of battery free slots | 0 |
| max current discharge | 208 A |
| Battery power in VAH | 0 VAh runtime |
| extended runtime | 0 |
| free slots | 1 |
|---|---|
| preinstalled device | Network management card 2 with environmental monitoring, out of band access and Modbus |
| control panel | Multifunction LCD status and control console |
| alarm | Audible and visible alarms prioritized by severity |
| Emergency power off | Yes |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 536.61 kg |
| Package 1 Height | 230.0 cm |
| Package 1 width | 82.0 cm |
| Package 1 Length | 108.2 cm |
| Warranty | 1 year on-site repair or replace with factory authorized Start-Up |
|---|
