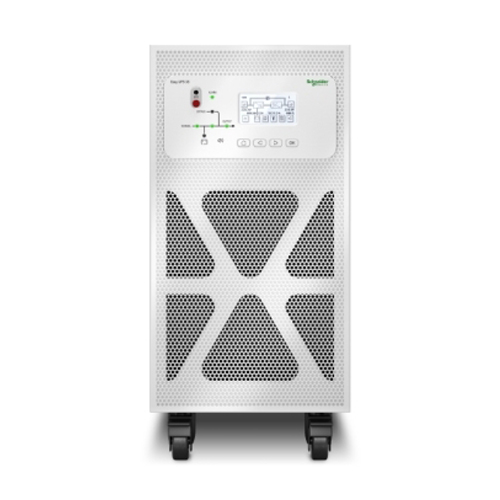

Easy UPS E3SUPS10KH

Enquire Now
Overview
Presentation High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 10 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is supplied without batteries, so you can easily customize the battery solution.
Lead time Usually Ships within 6 Weeks
Main
Main Input Voltage 400 V 3 phases
Other Input Voltage 380 V
415 V
Main Output Voltage 400 V 3 phases
Other Output Voltage 380 V
415 V
rated power in W 10 kW
rated power in VA 10 kVA
provided equipment Dust filter
Installation guide
Physical
colour White (RAL 9003)
height 53 cm
width 25 cm
depth 70 cm
net weight 36 kg
USB compatible Yes
Input
maximum input current 18 A
input harmonic distortion Less than 3 % for full load
load power factor 0.9 leading to 0.9 lagging
Input Power Factor at Full Load 0.99
input voltage limits 304…477 V
network frequency 45…65 Hz
Output
Maximum configurable power in VA 10 kVA
Maximum configurable power in W 10 kW
output frequency 50 Hz sync to mains
60 Hz sync to mains
harmonic distortion Less than 3 %
output harmonic distortion < 3% linear load
output overload operation 10 minutes at 125% and 60 seconds at 150%
UPS type Double conversion online
bypass type Built-in maintenance bypass
crest factor 3 : 1
Conformance
product certifications CE
EAC
RCM
standards IEC 62040-1-1
IEC 62040-2
IEC 62040-3
IEC 62040-4
ISTA 2B
Environmental
ambient air temperature for operation 0…40 °C
relative humidity 0…95 % non-condensing
operating altitude 0…3281 ft
ambient air temperature for storage -15…40 °C
storage Relative Humidity Non-condensing 0…95 %
storage altitude 0.00…14999.82 m
acoustic level 60 dBA
heat dissipation 516 Btu/h
IP degree of protection IP20
Batteries & Runtime
Efficiency View Efficiency Graph

action_new_window
battery type External battery system
maximum short-circuit current 10 kA
number of battery filled slots 0
number of battery free slots 0
Packing Units
Package 1 Weight 50 kg
Package 1 Height 77.2 cm
Package 1 width 40 cm
Package 1 Length 70 cm
Contractual warranty
Warranty 1 year on-site repair or replace with factory authorized Start-Up
