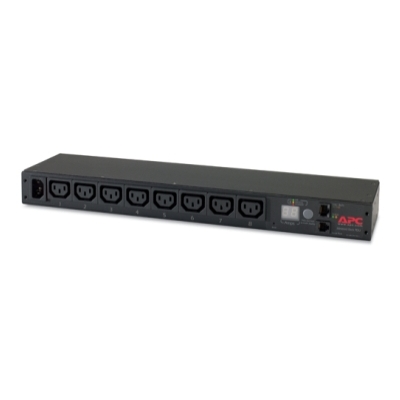

Metered Rack PDU AP7820B

Enquire Now
Overview
Lead time Usually in Stock
Main
Main Input Voltage 200 V
208 V
230 V
Main Output Voltage 208 V
230 V
Input Connection Type IEC 60320 C14
number of rack unit 1U
cable length 1.98 m
provided equipment Cord retention bracket(s)
Installation guide
Rack mounting brackets
User manual
Physical
height 4.4 cm
width 44.4 cm
depth 10.2 cm
net weight 1.73 kg
mounting location Front
Rear
mounting preference No preference
mounting mode Rack-mounted
Input
[In] rated current 10 A
input current limits 15 A
Load capacity 2300 VA
network frequency 50/60 Hz
Output
rated current 10 A – 230 V
12 A – 208 V
number of power socket outlets 8 IEC 60320 C13
Conformance
product certifications CUL listed
C-Tick
CE
CSA
GOST
UL listed
VDE
VCCI
standards FCC part 15 class A
UL 60950
Environmental
ambient air temperature for operation -5…45 °C
relative humidity 5…95 %
operating altitude 0…10000 ft
ambient air temperature for storage -25…65 °C
storage Relative Humidity 5…95 %
storage altitude 0.00…15240.00 m
Packing Units
Package 1 Weight 2.91 kg
Package 1 Height 6.4 cm
Package 1 width 47 cm
Package 1 Length 33.7 cm
Contractual warranty
Warranty 2 years repair or replace
